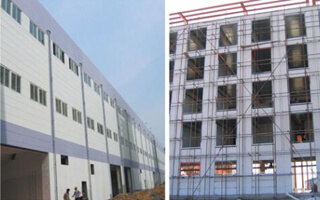

AAC (Autoclave Aerated Concrete) is one type building material using mainly Siliceous materials (fly-ash, sand, slag), Calcareous materials (lime, cement and gypsum) and Aluminum powder. With the good performance and the insulation advantage,it is widely used on internal partition wall and external walls, roofs and floors in residential buildings or industrial plants. It is a good building maerial for inernal and external walls for steel structure buildings.
Applications of Lightweight AAC Panel:

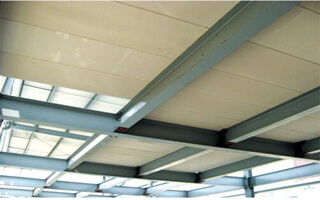

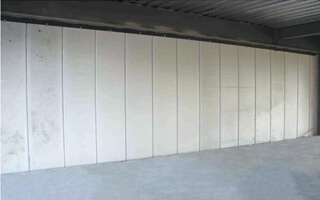

The AAC panels are applied to the hotels, schools, offices, market places and houses etc.as the internal wall of concrete structures and steel structures. For internal walls, the househould walls, separating walls, partition walls are common, and by using the AAC panels, the usable area of a building will enlarge thanks to the thin feature. Without using structure columns, beams and other auxiliary components, it can reduce the wall laod, thereby reduce the cost of the buildings. AAC floor panels can ensure the excellent bearing capacity and thermal insulation with the scientific reinforcement design and the proper raw material mix.

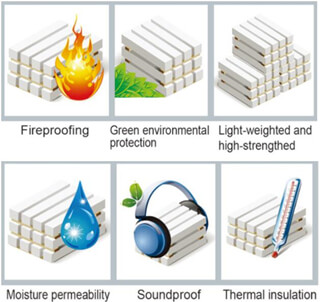

Features & Advantages of AAC Products
★ Light weight
AAC block density is usually 400-700kg/m³, 1/3 of clay block, 1/5 of common concrete block. 40% lower than the ordinary building materials.
★ Cost saving
Being lightweight AAC reduction in steel 27% , cement 20% structural cost saving. Being 8 times the size of a clay brick, AAC wall construction involves 1/3 the joints, thus an overall mortar saving 66%.
★ Earthquake Resistant
It has been proven to withstand wind loads of category 5 tropical storms. The same building structure, improve double aseismatic ability than the brick level.
★ High strength of AAC block
High strength can reach 40KG/square centimeters (about 4.0MPa). Sand type AAC block normally is 3.8-4.2Mpa, fly ash type AAC block is about 3.0-3.5Mpa.
★ Fire Resistant
Best in class fire rating of 4 hours. The melting point of AAC is over 1600ºc, more than twice the typical temperature in a building fire of 650ºc.
★ Water Barrier
Its water barrier properties are further enhanced by adding silicone based additives.

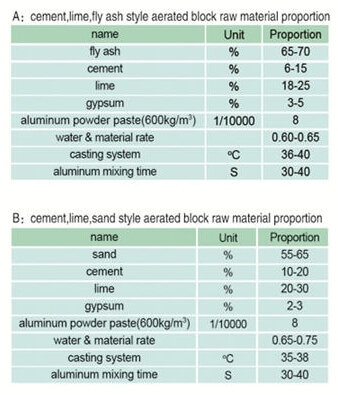

The Raw Material Proportion of AAC Block
A: Contains cement, lime, fly ash, ect. B: Contains cement, lime, sand, ect.
Hongfa AAC Plant & Equipment
Aerated autoclaved concrete block is the light and porous building material. The equipments to make AAC block include powder bin, slurry storage tank, separator for blocks, ferry trolley, curing cart, screw conveyor, ball mill, mould, aluminite powder mixer, horizontal cutting machine, vertical cutting machine, pouring mixer, turning and demolding device, autoclave, steam boiler, finished products hoist, conversion cutting trolley, rolling-over device etc.

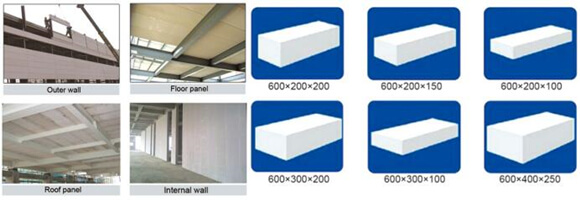

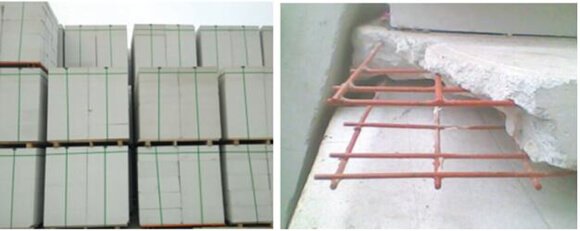

★ It can be made into any sizes of bricks and steel reinforced blocks:
Such as 600×200×100, 80×80×180, 240×115×53, 600×200×125 ect. They could be used in industry building and common building. In future, AAC block is an ideal substitute for traditional clay brick.
★ Capacity: from 50,000 cubic meter to 300,000 cubic meters per year.
★ Hongfa AAC block production line includes:
Raw Material preparation → Mixing & pouring → Molding → Curing & Cutting → Steam generating system → Autoclaving → Finished products Upload & Packing
Hongfa is a powerful and your best partner of building material industry
★ Continuous improvements and ambitious development of new technologies have made us the technological leader in the construction materials machinery.
★ HONGFA provides project report about product quality, production speed for AAC plant, hereby combining everything you need in order to make your project successful. Hongfa assigns unique production technology to make the cost of aerated block production 4 usd/M³lower than competitors.
★ The manufacturing of autoclaved aerated concrete products demands high standards for mixing and dosing of the aggregates, the control of the whole process and the control of each production step.
★ Hongfa’s aerated concrete installations are proven advanced technology processes, designed according to customers specific requirements. This approach allows complete solutions to ensure highly efficient, optimised processes resulting in consistent final product quality.
Simply reach out to the best first by contacting Hongfa today.
