Automatic Block Production Line HFB546M

The cement block making HFB546M is automatic including the brick equipment host, control unit, pallet feeder, manganese steel mould, block conveyor etc.  Combing the mixer and 6m belt conveyor, it can makes a simple automatic brick production line. The Hongfa HFB532M cement block laying machine in stationery style with platform vibration. It adopts flat vibration, mould vibration, and squeeze compression vibration, manufactures the blocks with average density and high strength. It has following advantages:

• Advanced Technology

Combining with German High-tech and Hongfa Technology, this advanced automatic brick making machine HFB546M features the unique dose charging device and the strong material-distributing structure to ensure the block’s quality of various materials, so this HFB546M automatic block making machine is popular.

– Passing the strict quality inspection: CE/SGS/ISO9001:2000
– Upper mould moving and raw materials released handle by control box
– Super strong vibration and can produce high density brick
– With vibration case in the bottom, so can produce more good brick and motors not easy to burn
– Extremely proving the stability

• Special Design

-The block moulding machine HFB546M applies the platform vibrating feeding and up-down vibrating forming, which is fast and make the density and strength better.

– The automatic cement block moulding machine HFB546M is able to equipped with the PLC intelligent control, human-computer interface, control system including the complete logic control, production program, malfunction diagnosis system and remote control function..

– Pushing-pulling mold is automatic with electricity, which saves labor and raises the efficiency.

• Strong and Stable Structure

The frame of the interlocking block making machine HFB546M is dragon gate style and it is made of super steel, carrying strong resistance to vibration and being dependable. Four vertical shafts is wear-resisting, which can guarantee the accurate position for the mold .

• Updated Material Storing Device

It is made up of material releasing hopper and material storing hopper. Material releasing hopper is fixed on the top of machine frame by bolts while material storing hopper is fixed below releasing hopper by bolts. When material feeding happens, the material releasing handle can be pulled manually or by motor, which drops material into mold  box and finishes feeding.

• Automatic Material Feeding

The concrete block making machine HFB546M is widely used, for it is automatic not only in blocks forming process, but also automatic in pallet feeding, materials release, material feeding, and mold moving and brick conveyor.

• Excellent Delivery Device

The delivery device of the automatic concrete block making machine HFB546M is made up of cycloidal pin wheel speed reducer, chains, v-shape triangle belt, delivery wheel, self-conveying frame and so on. cycloidal pin wheel speed reducer drives v-shape triangle belt to move in cycle through delivery device.

• Flexible Brick Production Line

The interlocking stabilized soil block machine HFB546M whole production line combines the Mixer, Conveyor Belt, Block Host, Block Conveyor, Mould and Trolley etc. It is powerful to  increase the block making efficiency.

• Achieve Scrutiny and Smart Controlling

The computer is of fault diagnosis system. Warning signal is propitious to eliminate the fault. Combine with long-distance controlling system, it can achieve scrutiny, controlling, as well as diagnosis.

• High Quality Blocks Produced

Adding vibration case, stronger vibration and motors not easy to burn. This HFB546M cement block laying machine can produce high density cement blocks by changing the brick moulds, solid/hollow/cellular masonry products, paving stones with or without face mix, garden and landscaping products, slabs, edgers, kerbstones, grass blocks, slope blocks, interlocking blocks, etc.

• Available for Various Raw Materials

The raw materials to make block or brick with this cement building block making machine are: crushed stone, sand, cement, dust and coal fly ash, cinder, slag, gangue, gravel, expanded perlite, and other industrial wastes.

HFB546M Block Machine Technical Parameters

The Finished Block Products Capacity

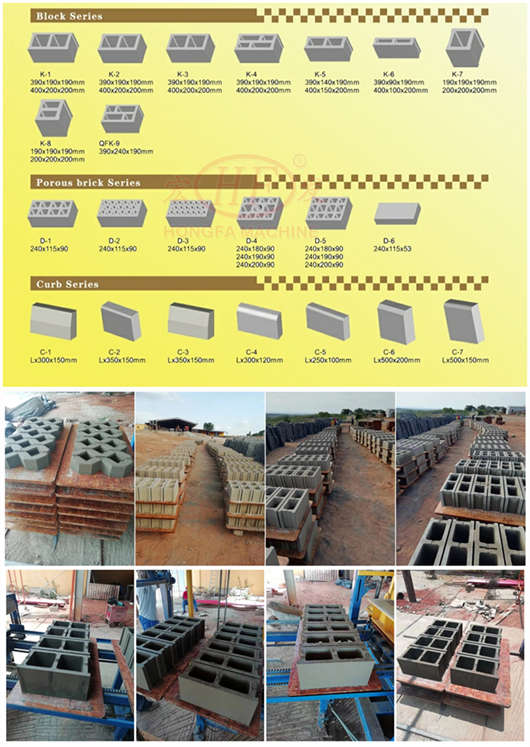

Applied Block Samples Photo
