Automatic Block Making Machine HFB5230A

The hydraculic HFB5230A concrete brick machine with unique working principle, combining with German high-tech and Hongfa technology, stands at a particular niche in block forming process. Trust our experience with your concrete brick production needs to help you get the most from investment. Speak with us directly today to begin the process.

  • Greater output which can be increased by 10%

  • Lower specific energy consumption, 15~20% less

  • Precise and accurate process control

Get Free Quote >>

Hydraulic Cement Block Making Machine HFB5230A in Large Capacity

Automatic brick making machine HFB5230A with unique working principle, combining with German High-tech and Hongfa Technology, stands at a particular niche in block forming process. It is especially useful in form and intact brick production.

Fly ash block making machine Hongfa HFB5230A

When comparing a highest configuration block machine HFB5250A to advanced high capacity brick making machine HFB5230A, this cement block equipment retains the high capacity on 12pcs/mold at 400*200*200mm hollow block size. We offer different types of level of the same capacity of concrete block machines, like HFB5250A, HFB5230A, HFB5230B. The superior HFB5230A follows the German High-tech and Hongfa Technology, Taiwan Calyca Hydraulic and imported German Siemens parts etc., which to establish a stable and good performance block forming system and provide good appearance blocks.

Hongfa good quality concrete block making machine qt12 sand fly ash block

We employ HFB5230A as primary large scale cement block machine to make concrete blocks, solid/hollow/cellular masonry products, paving stones with or without face mix, garden and landscaping products, slabs, edgers, kerb stones, grass blocks, slope blocks, interlocking blocks, etc.

Hongfa block machine factory HFB5230A high quality brick making machinery

Our experts will give professional advice for your individual application. Trust our experience with your concrete brick production needs. Speak with us directly today to begin the process.

Hongfa cement block making machine HFB5250A

The advantages at a glance

  • High capacityand stable operation
  • With superiorperformance and easy maintenance
  • Better mixing effectand precise and accurate process control
  • Centralized electric device and integrated control system
  • Smart hydraulic forming system and high efficiency
  • Lower specific energy consumption, 15~20% less than traditional block equipment
  • Greater output which can be increased by 10%, compared with lower frequency equipment
  • Excellent finished block appearance

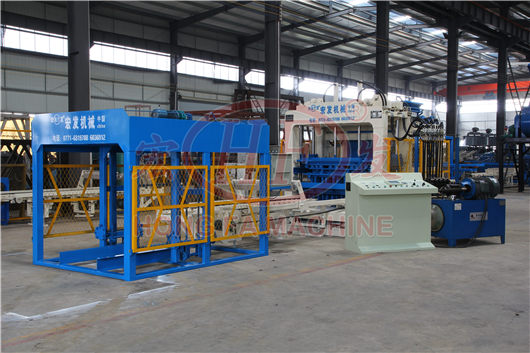

Hongfa concrete block making machinery qt12 high quality

Available Raw Materials to Make Block or Brick

● The raw materials to make block or brick with this block making machine are:

Crushed stone, sand, cement, dust and coal fly ash, cinder, slag, gangue, gravel, expanded perlite, and other industrial wastes.

Concrete Blocks from Hongfa Machinery Cement Brick Machine

Available Sizes and Thickness of Block or Brick Products

● Concrete blocks, solid/hollow/cellular masonry products, paving stones with or without face mix, garden and landscaping products, slabs, edgers, kerbstones, grass blocks, slope blocks, interlocking blocks, etc.

● This Automatic Block Making Equipment or Brick Production Machine machine can make all kinds of bricks by changing moulds, so we can make the moulds according to customer’s need. Below type of bricks capacity just for your reference.

The Finished Block Products Specifications

Hongfa Brick Making Machine
HFB5230A Capacity
Block TypeMold

Cycle

Pcs

/Mold

Pcs

/8hrs

Hollow Block
400*200*200mm
15-20s1223000
Solid Block
240*115*53
15-17s65124800
Paving Block
220*110*50mm
20-25s4260000

Applied Block Sample Photo

concrete block size sample1

Automatic Cement Brick Making Machine HFB5230A Specifications (Hydraulic Type)

Design Advantages

● Flexible Vibration Frequency
Adopting frequency conversion motors and synchronization vibration to insure the products making average, and the vibration frequency can be adjusted randomly according to request.

● Achieve Scrutiny, Controlling, and Diagnosis

The computer for the cement brick making is of fault diagnosis system. Warning signal is propitious to eliminate the fault. Combine with long-distance controlling system, it can achieve scrutiny, controlling, as well as diagnosis.

● Optimal Material Vibration
Low frequency in feeding material and high frequency vibration makes the different materials to have an optimal vibration way.

● PLC Intelligent Control

The control system of brick laying machine is equipped with complete logic control, production program, malfunction diagnosis system and remote control function. So a trained person for operation rather than a professional one can handle the block making simply.

● Passing the strict quality inspection

– CE/BV/SGS/ISO9001:2000

● High Density Finished Blocks

Designed with particular storage and description material system which insure the feeding accuracy and avoiding the effect of exterior material, the finished blocks made by HFB12D interlocking brick machine are with high density features.

Technical Parameters

Hongfa Brick Making Machine

HFB5230A

Technical ParameterDetailed Data
Overall Dimension8200×2600×3020

(mm)

Rated Pressure21MPa
Main Vibration FormPlatform Vibration
Acceleration of vibration15-20g
Cycle Time15-20 seconds
Vibration100KN
Vibrating Frequency2800-4500

rolls/minute

Motors Power51KW
Pallet Size1420*900(mm)
Weight14.5T

The Concrete Block Making Production Line

Cement Silo and Screw Conveyor

Function: Store and transfer brick making raw materials, like cement and coal fly ash etc.

Batching Machine

Function: Store concrete block forming raw materials, like sand, crushed stone, dust, cinder, slag, gangue, gravel, expanded perlite, and other industrial wastes etc. and scale the raw materials for mixing preparation.

Mixer

Function: Mixing raw materials, cement, sand, crushed stone fly ash, water together etc.

Scale System

Function: The scale system includes cement & fly ash scale machine, water scale etc.

Concrete block forming system

Function: To make cement brick in a fast way, 15-25 seconds for a cycle. Different size of blocks can produce by changing the related moulds in the block forming machine. After the block finished, it will transfer by the block conveyor for stacking.

Want more details on the cement brick production line, please Contact Us.
